#include <hfftoutput.h>

Inheritance diagram for HFftOutput< T >:

[legend]

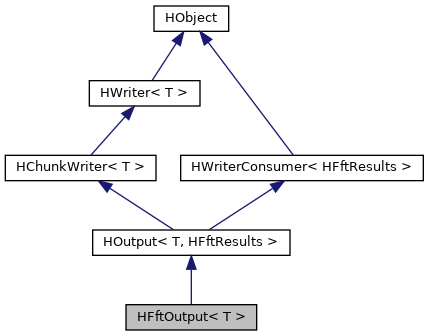

Collaboration diagram for HFftOutput< T >:

[legend]

Public Member Functions
	HFftOutput (int size, int average, int skip, HWriter< HFftResults > writer, HWindow< T > window, H_SAMPLE_RATE zoomRate=0, int zoomFactor=1, int zoomCenter=0)

	HFftOutput (int size, int average, int skip, HWriterConsumer< T > consumer, HWindow< T > window, H_SAMPLE_RATE zoomRate=0, int zoomFactor=1, int zoomCenter=0)

	HFftOutput (int size, int average, int skip, HWriter< HFftResults > writer, HWindow< T > window, bool isIq)

	HFftOutput (int size, int average, int skip, HWriterConsumer< T > consumer, HWindow< T > window, bool isIq)

	~HFftOutput ()

int	Output (T *src, size_t size)

bool	Command (HCommand *command)

int	Width ()

int	Left ()

int	Right ()

int	Center ()

float	BinSize ()

float	BinSize (H_SAMPLE_RATE rate)

H_SAMPLE_RATE	Rate ()

void	SetZoom (int zoomFactor, int zoomCenter)

bool	Start ()

bool	Stop ()

Public Member Functions inherited from HOutput< T, HFftResults >
void	Ready (HFftResults *buffer, size_t blocksize)

void	Ready (HFftResults value)

void	Ready ()

bool	Start ()

bool	Stop ()

	HOutput ()

	HOutput (HWriterConsumer< T > *consumer)

	HOutput (std::function< void(HFftResults *, size_t)> ready)

	HOutput (std::function< void(HFftResults , size_t)> ready, HWriterConsumer< T > consumer)

	HOutput (std::function< void(HFftResults)> ready)

	HOutput (std::function< void(HFftResults)> ready, HWriterConsumer< T > *consumer)

	HOutput (std::function< void()> ready)

	HOutput (std::function< void()> ready, HWriterConsumer< T > *consumer)

	HOutput (HWriter< HFftResults > *writer)

	HOutput (HWriter< HFftResults > writer, HWriterConsumer< T > consumer)

	HOutput (int chunksize)

	HOutput (int chunksize, HWriterConsumer< T > *consumer)

	HOutput (std::function< void(HFftResults *, size_t)> ready, int chunksize)

	HOutput (std::function< void(HFftResults , size_t)> ready, int chunksize, HWriterConsumer< T > consumer)

	HOutput (std::function< void(HFftResults)> ready, int chunksize)

	HOutput (std::function< void(HFftResults)> ready, int chunksize, HWriterConsumer< T > *consumer)

	HOutput (std::function< void()> ready, int chunksize)

	HOutput (std::function< void()> ready, int chunksize, HWriterConsumer< T > *consumer)

	HOutput (HWriter< HFftResults > *writer, int chunksize)

	HOutput (HWriter< HFftResults > writer, int chunksize, HWriterConsumer< T > consumer)

int	WriteChunk (T *src, size_t blocksize)

void	SetWriter (HWriter< HFftResults > *writer)

Public Member Functions inherited from HChunkWriter< T >
int	Write (T *src, size_t blocksize)

	HChunkWriter ()

	HChunkWriter (int chunksize)

int	GetChunksize ()

Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default

HWriter< T > *	Writer ()

Public Member Functions inherited from HObject
	HObject ()

Public Member Functions inherited from HWriterConsumer< HFftResults >
HWriterConsumer< HFftResults > *	Consumer ()

Detailed Description

template<class T>
class HFftOutput< T >

Calculate a number of dfft's, if applicable then average the spectrum over the number of dfft's, then write the calculated spectrum results to the given writer (usually a HCustomWRiter)

Constructor & Destructor Documentation

◆ HFftOutput() [1/4]

template<class T >

HFftOutput< T >::HFftOutput	(	int	size,
		int	average,
		int	skip,
		HWriter< HFftResults > *	writer,
		HWindow< T > *	window,
		H_SAMPLE_RATE	zoomRate = `0`,
		int	zoomFactor = `1`,
		int	zoomCenter = `0`
	)

Create a new HFft output that writes to a writer

Parameters

size	The FFT size (1024 is a good choice for analytic use, 256 is recommended for realtime applications)
average	The number of FFT's to accumulate and average before calling the result writer. Note that if you use anything but 1, you can not run your signal through the output multiple times since that would mix results in the averaging phase (say if you where zooming in)
skip	Take each 'skip' sample and skip the rest
writer	The result writer (most likely a HCustomerWriter<HFftResults>*)
window	The window to use before calculating the FFT
zoomRate	The samplerate of the input samples
zoomFactor	Zoom factor. If larger than 1, then the spectrum is zoomed around 'center' (in relation to 'size'). The factor must divide up into 'size' with an integer result (1024/4 = ok, 1024/3 = not-ok!).
zoomCenter	The center bin (frequency), must be in the [0-size/2] range. Use the static HFftOutput::BinAtFrequency() method if you do not already know the bin number.

If you intend to use scaling, you must initialize the HFftOutput with a samplerate. You can set the factor to 1 initially to disable zooming. But if you have not provided zoomRate != 0, zooming will not be setup and be available.!

◆ HFftOutput() [2/4]

template<class T >

HFftOutput< T >::HFftOutput	(	int	size,
		int	average,
		int	skip,
		HWriterConsumer< T > *	consumer,
		HWindow< T > *	window,
		H_SAMPLE_RATE	zoomRate = `0`,
		int	zoomFactor = `1`,
		int	zoomCenter = `0`
	)

Create a new HFft output that registers with an upstream writer

Parameters

size	The FFT size (1024 is a good choice for analytic use, 256 is recommended for realtime applications)
average	The number of FFT's to accumulate and average before calling the result writer. Note that if you use anything but 1, you can not run your signal through the output multiple times since that would mix results in the averaging phase (say if you where zooming in)
skip	Take each 'skip' sample and skip the rest
consumer	The upstream writer that should write to this component
window	The window to use before calculating the FFT
zoomRate	The samplerate of the input samples
zoomFactor	Zoom factor. If larger than 1, then the spectrum is zoomed around 'center' (in relation to 'size'). The factor must divide up into 'size' with an integer result (1024/4 = ok, 1024/3 = not-ok!).
zoomCenter	The center bin (frequency), must be in the [0-size/2] range. Use the static HFftOutput::BinAtFrequency() method if you do not already know the bin number.

If you intend to use scaling, you must initialize the HFftOutput with a samplerate. You can set the factor to 1 initially to disable zooming. But if you have not provided zoomRate != 0, zooming will not be setup and be available.!

◆ HFftOutput() [3/4]

template<class T >

HFftOutput< T >::HFftOutput	(	int	size,
		int	average,
		int	skip,
		HWriter< HFftResults > *	writer,
		HWindow< T > *	window,
		bool	isIq
	)

Create a new HFft output that writes to a writer

Parameters

size	The FFT size (1024 is a good choice for analytic use, 256 is recommended for realtime applications)
average	The number of FFT's to accumulate and average before calling the result writer.
skip	Take each 'skip' sample and skip the rest
writer	The result writer (most likely a HCustomerWriter<HFftResults>*)
window	The window to use before calculating the FFT
isIq	If set to true then the input must be IQ data and the returned spectrum then contains negative as well as positive frequencies. If you intend to use scaling, you must initialize the HFftOutput with a samplerate. You can set the factor to 1 initially to disable zooming. But if you have not provided zoomRate != 0, zooming will not be setup and be available.!

◆ HFftOutput() [4/4]

template<class T >

HFftOutput< T >::HFftOutput	(	int	size,
		int	average,
		int	skip,
		HWriterConsumer< T > *	consumer,
		HWindow< T > *	window,
		bool	isIq
	)

Create a new HFft output that writes to a writer

Parameters

size	The FFT size (1024 is a good choice for analytic use, 256 is recommended for realtime applications)
average	The number of FFT's to accumulate and average before calling the result writer.
skip	Take each 'skip' sample and skip the rest
consumer	The upstream writer that should write to this component
window	The window to use before calculating the FFT
isIq	If set to true then the input must be IQ data and the returned spectrum then contains negative as well as positive frequencies. If you intend to use scaling, you must initialize the HFftOutput with a samplerate. You can set the factor to 1 initially to disable zooming. But if you have not provided zoomRate != 0, zooming will not be setup and be available.!

◆ ~HFftOutput()

template<class T >

HFftOutput< T >::~HFftOutput ( )

inline

Default destructor

Member Function Documentation

◆ BinSize() [1/2]

template<class T >

float HFftOutput< T >::BinSize ( )

inline

Return the number of frequencies per bin

◆ BinSize() [2/2]

template<class T >

float HFftOutput< T >::BinSize ( H_SAMPLE_RATE rate )

inline

Given a samplerate, return the number of frequencies per bin

◆ Center()

template<class T >

int HFftOutput< T >::Center ( )

inline

Get the center FFT frequency

◆ Command()

template<class T >

bool HFftOutput< T >::Command ( HCommand * command )

inlinevirtual

Execute or carry through a command

Implements HChunkWriter< T >.

◆ Left()

template<class T >

int HFftOutput< T >::Left ( )

inline

Get the leftmost frequency of the selected fft window

◆ Output()

template<class T >

int HFftOutput< T >::Output	(	T *	src,
		size_t	size
	)

virtual

Process a block of samples

Implements HOutput< T, HFftResults >.

◆ Rate()

template<class T >

H_SAMPLE_RATE HFftOutput< T >::Rate ( )

inline

Return the output sample rate after resampling

◆ Right()

template<class T >

int HFftOutput< T >::Right ( )

inline

Get the rightmost frequency of the selected fft window

◆ SetZoom()

template<class T >

void HFftOutput< T >::SetZoom	(	int	zoomFactor,
		int	zoomCenter
	)

Change zoom factor and center

◆ Start()

template<class T >

bool HFftOutput< T >::Start ( )

inlinevirtual

Initialize before first read/write

Reimplemented from HWriter< T >.

◆ Stop()

template<class T >

bool HFftOutput< T >::Stop ( )

inlinevirtual

Cleanup after last read/write

Reimplemented from HWriter< T >.

◆ Width()

template<class T >

int HFftOutput< T >::Width ( )

inline

Get the width of the FFT spectrum (how many frequencies is covered)

The documentation for this class was generated from the following files:

/home/henrik/Git/Hardt/hardt/libhardt/include/hfftoutput.h
/home/henrik/Git/Hardt/hardt/libhardt/outputs/hfftoutput.cpp
