HGoertzelOutput< T > Class Template Reference

#include <hgoertzeloutput.h>

Inheritance diagram for HGoertzelOutput< T >:

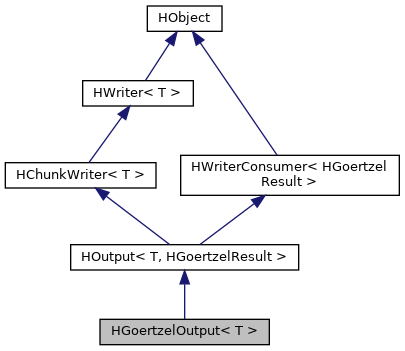

Collaboration diagram for HGoertzelOutput< T >:

Public Member Functions
	HGoertzelOutput (int size, int average, float bin, HWriter< HGoertzelResult > *writer, HWindow< T > *window)
	HGoertzelOutput (int size, int average, float bin, HWriterConsumer< T > *consumer, HWindow< T > *window)
	HGoertzelOutput (int size, int average, H_SAMPLE_RATE rate, int frequency, HWriter< HGoertzelResult > *writer, HWindow< T > *window)
	HGoertzelOutput (int size, int average, H_SAMPLE_RATE rate, int frequency, HWriterConsumer< T > *consumer, HWindow< T > *window)
	~HGoertzelOutput ()
int	Output (T *src, size_t size)
bool	Command (HCommand *command)
Public Member Functions inherited from HOutput< T, HGoertzelResult >
void	Ready (HGoertzelResult *buffer, size_t blocksize)
void	Ready (HGoertzelResult value)
void	Ready ()
bool	Start ()
bool	Stop ()
	HOutput ()
	HOutput (HWriterConsumer< T > *consumer)
	HOutput (std::function< void(HGoertzelResult *, size_t)> ready)
	HOutput (std::function< void(HGoertzelResult *, size_t)> ready, HWriterConsumer< T > *consumer)
	HOutput (std::function< void(HGoertzelResult)> ready)
	HOutput (std::function< void(HGoertzelResult)> ready, HWriterConsumer< T > *consumer)
	HOutput (std::function< void()> ready)
	HOutput (std::function< void()> ready, HWriterConsumer< T > *consumer)
	HOutput (HWriter< HGoertzelResult > *writer)
	HOutput (HWriter< HGoertzelResult > *writer, HWriterConsumer< T > *consumer)
	HOutput (int chunksize)
	HOutput (int chunksize, HWriterConsumer< T > *consumer)
	HOutput (std::function< void(HGoertzelResult *, size_t)> ready, int chunksize)
	HOutput (std::function< void(HGoertzelResult *, size_t)> ready, int chunksize, HWriterConsumer< T > *consumer)
	HOutput (std::function< void(HGoertzelResult)> ready, int chunksize)
	HOutput (std::function< void(HGoertzelResult)> ready, int chunksize, HWriterConsumer< T > *consumer)
	HOutput (std::function< void()> ready, int chunksize)
	HOutput (std::function< void()> ready, int chunksize, HWriterConsumer< T > *consumer)
	HOutput (HWriter< HGoertzelResult > *writer, int chunksize)
	HOutput (HWriter< HGoertzelResult > *writer, int chunksize, HWriterConsumer< T > *consumer)
int	WriteChunk (T *src, size_t blocksize)
void	SetWriter (HWriter< HGoertzelResult > *writer)
Public Member Functions inherited from HChunkWriter< T >
int	Write (T *src, size_t blocksize)
	HChunkWriter ()
	HChunkWriter (int chunksize)
int	GetChunksize ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriterConsumer< HGoertzelResult >
HWriterConsumer< HGoertzelResult > *	Consumer ()

Detailed Description

template<class T>
class HGoertzelOutput< T >

Calculate one or more Goertzl spectrum results over a set of samples.

When the requested number of calculations has been performed, the result object is written to the provided HWriter (usualy a HCustomWriter)

Constructor & Destructor Documentation

HGoertzelOutput() [1/4]

template<class T >

HGoertzelOutput< T >::HGoertzelOutput	(	int	size,
		int	average,
		float	bin,
		HWriter< HGoertzelResult > *	writer,
		HWindow< T > *	window
	)

Construct a new HGoertzelOutput, with a given frequency bin, that writes to a writer

HGoertzelOutput() [2/4]

template<class T >

HGoertzelOutput< T >::HGoertzelOutput	(	int	size,
		int	average,
		float	bin,
		HWriterConsumer< T > *	consumer,
		HWindow< T > *	window
	)

Construct a new HGoertzelOutput, with a given frequency bin, that registers with an upstream writer

HGoertzelOutput() [3/4]

template<class T >

HGoertzelOutput< T >::HGoertzelOutput	(	int	size,
		int	average,
		H_SAMPLE_RATE	rate,
		int	frequency,
		HWriter< HGoertzelResult > *	writer,
		HWindow< T > *	window
	)

Construct a new HGoertzelOutput, from the sample rate and a frequency, that writes to a writer

HGoertzelOutput() [4/4]

template<class T >

HGoertzelOutput< T >::HGoertzelOutput	(	int	size,
		int	average,
		H_SAMPLE_RATE	rate,
		int	frequency,
		HWriterConsumer< T > *	consumer,
		HWindow< T > *	window
	)

Construct a new HGoertzelFilter, from the sample rate and a frequency, that registers with an upstream writer

~HGoertzelOutput()

template<class T >

HGoertzelOutput< T >::~HGoertzelOutput ( )

inline

Default destructor

Member Function Documentation

Command()

template<class T >

bool HGoertzelOutput< T >::Command ( HCommand *  command )

inlinevirtual

Execute or carry through a command

Implements HChunkWriter< T >.

Output()

template<class T >

int HGoertzelOutput< T >::Output ( T *  src, size_t  size  )

virtual

Generate output from a block of samples

Implements HOutput< T, HGoertzelResult >.

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hgoertzeloutput.h
• /home/henrik/Git/Hardt/hardt/libhardt/outputs/hgoertzeloutput.cpp
