HAgc< T > Class Template Reference

#include <hagc.h>

Inheritance diagram for HAgc< T >:

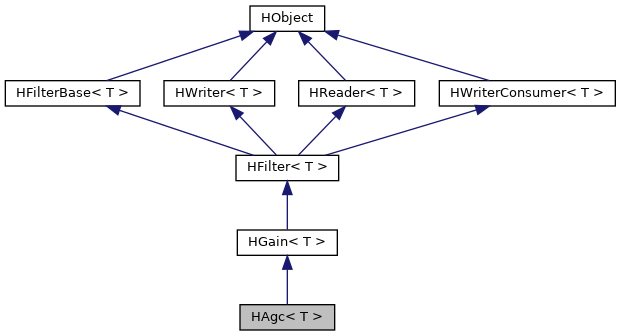

Collaboration diagram for HAgc< T >:

Public Member Functions
	HAgc (HWriter< T > *writer, T level, int average, size_t blocksize, int increment=4, bool allowUnity=false, HProbe< T > *probe=NULL)
	HAgc (HWriterConsumer< T > *consumer, T level, int average, size_t blocksize, int increment=1, bool allowUnity=false, HProbe< T > *probe=NULL)
	HAgc (HReader< T > *reader, T level, int average, size_t blocksize, int increment=1, bool allowUnity=false, HProbe< T > *probe=NULL)
	~HAgc ()
virtual void	Filter (T *src, T *dest, size_t blocksize)
void	SetLevel (T level)
void	SetAverage (int average)
void	SetEnabled (bool enabled)
void	SetGain (float gain)
Public Member Functions inherited from HGain< T >
	HGain (HWriter< T > *writer, float gain, size_t blocksize, HProbe< T > *probe=NULL)
	HGain (HWriterConsumer< T > *consumer, float gain, size_t blocksize, HProbe< T > *probe=NULL)
	HGain (HReader< T > *reader, float gain, size_t blocksize, HProbe< T > *probe=NULL)
	~HGain ()
void	SetGain (float gain)
float	GetGain ()
Public Member Functions inherited from HFilter< T >
	~HFilter ()
int	Write (T *src, size_t blocksize)
int	Read (T *dest, size_t blocksize)
bool	Start ()
bool	Stop ()
bool	Command (HCommand *command)
void	Enable ()
void	Disable ()
bool	GetEnabled ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Additional Inherited Members
Static Public Member Functions inherited from HFilter< T >
static std::vector< float >	ReadCoeffsFromFile (std::string filename)
static std::vector< float >	ReadCoeffsFromFile (char *filename)
Protected Member Functions inherited from HFilter< T >
	HFilter (HWriter< T > *writer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HWriterConsumer< T > *consumer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HReader< T > *reader, size_t blocksize, HProbe< T > *probe=NULL)
void	SetWriter (HWriter< T > *writer)
Protected Attributes inherited from HFilter< T >
int	_blocksize

Detailed Description

template<class T>
class HAgc< T >

A filter providing automatic gain (or attenuation)

Constructor & Destructor Documentation

HAgc() [1/3]

template<class T >

HAgc< T >::HAgc	(	HWriter< T > *	writer,
		T	level,
		int	average,
		size_t	blocksize,
		int	increment = 4,
		bool	allowUnity = false,
		HProbe< T > *	probe = NULL
	)

Construct a new HAgc object that writes to a writer

Parameters

writer	Downstream writer
level	Desired output level
average	Number of blocks to average over when comparing to desired output level
blocksize	Blocksize
increment	When a larger or smaller gain is needed, gain is increased/decreased by this fraction of the full needed increment
allowUnity	Allow use of unity gain (1), do not reduce gain further
probe	Probe

HAgc() [2/3]

template<class T >

HAgc< T >::HAgc	(	HWriterConsumer< T > *	consumer,
		T	level,
		int	average,
		size_t	blocksize,
		int	increment = 1,
		bool	allowUnity = false,
		HProbe< T > *	probe = NULL
	)

Construct a new HAgc object that registers with an upstream writer

Parameters

consumer	Upstream consumer
level	Desired output level
average	Number of blocks to average over when comparing to desired output level
blocksize	Blocksize
increment	When a larger or smaller gain is needed, gain is increased/decreased by this fraction of the full needed increment
allowUnity	Allow use of unity gain (1), do not reduce gain further
probe	Probe

HAgc() [3/3]

template<class T >

HAgc< T >::HAgc	(	HReader< T > *	reader,
		T	level,
		int	average,
		size_t	blocksize,
		int	increment = 1,
		bool	allowUnity = false,
		HProbe< T > *	probe = NULL
	)

Construct a new HAgc object that reads from a reader

Parameters

reader	Upstream reader
level	Desired output level
average	Number of blocks to average over when comparing to desired output level
blocksize	Blocksize
increment	When a larger or smaller gain is needed, gain is increased/decreased by this fraction of the full needed increment
allowUnity	Allow use of unity gain (1), do not reduce gain further
probe	Probe

~HAgc()

template<class T >

HAgc< T >::~HAgc

Default destructor

Member Function Documentation

Filter()

template<class T >

void HAgc< T >::Filter ( T *  src, T *  dest, size_t  blocksize  )

virtual

Run a block of samples through the gain filter

Reimplemented from HGain< T >.

SetAverage()

template<class T >

void HAgc< T >::SetAverage ( int  average )

inline

Set average (how many blocks is averaged before evaluating the gain again)

SetEnabled()

template<class T >

void HAgc< T >::SetEnabled ( bool  enabled )

inline

Enable or disable the automatic gain control

SetGain()

template<class T >

void HAgc< T >::SetGain ( float  gain )

inline

Set the gain level. This will disable the automatic gain control

SetLevel()

template<class T >

void HAgc< T >::SetLevel ( T  level )

inline

Set bounds (lowest and highest value in the hysteresis interval)

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hagc.h
• /home/henrik/Git/Hardt/hardt/libhardt/filters/hagc.cpp
