HReader< T > Class Template Reference

#include <hreader.h>

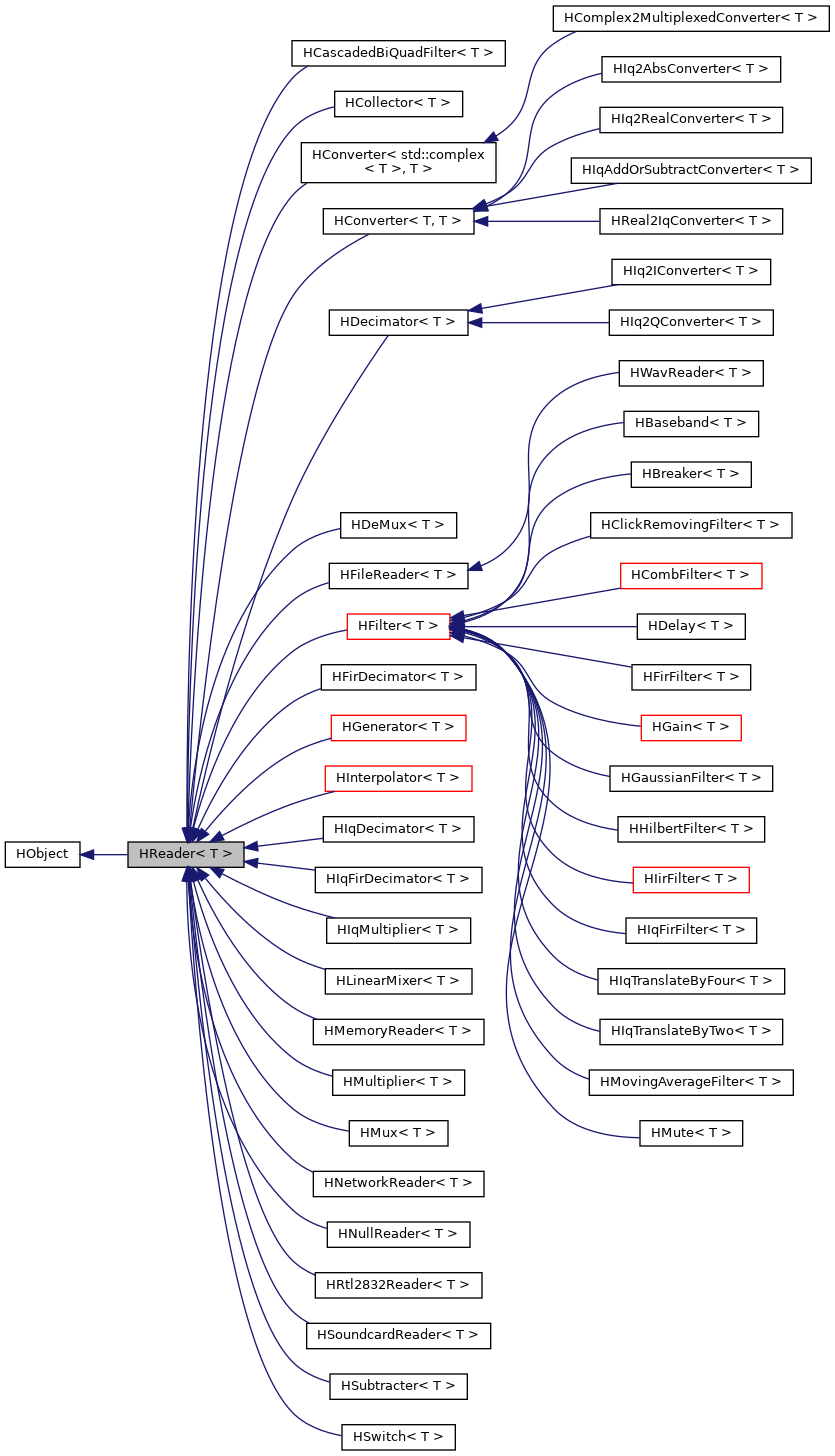

Inheritance diagram for HReader< T >:

Collaboration diagram for HReader< T >:

Public Member Functions
virtual	~HReader ()=default
virtual int	Read (T *dest, size_t blocksize)=0
virtual bool	Start ()
virtual bool	Stop ()
HReader< T > *	Reader ()
virtual bool	Command (HCommand *command)=0
Public Member Functions inherited from HObject
	HObject ()

Detailed Description

template<class T>
class HReader< T >

The base class for any reader type. It provides a pure virtual Read() function which must be implemented by the specific reader.

It further provides two virtual methods Start() and Stop() which is used by specifik readers to do any initialization/clean-up when reading starts and stops.

If you implement types that uses a HReader, you must implement Start() and Stop() so that they call Start() and Stop() on the reader the use.

Ex: You implement a mp3 file decoder based on the HFileReader class. The processor will read from your decoder class by calling Start() and then Read() untill you return 0 (zero). Then Stop() will be called. If your decoder class do not call Start() and Stop() on the base HFilerReader, the file will never be opened and the first Read() will return 0 (zero).

Always cascade Start() and Stop() to any HReader you implement or use.!

Constructor & Destructor Documentation

~HReader()

template<class T >

virtual HReader< T >::~HReader ( )

virtualdefault

Virtual destructor enabling delete on derived objects

Member Function Documentation

Command()

template<class T >

virtual bool HReader< T >::Command ( HCommand *  command )

pure virtual

Receive, handle and propagate command

Returns: True if the command was executed correctly False otherwise. Errors is written to the error log

Implemented in HConverter< Tin, Tout >, HConverter< std::complex< T >, T >, HConverter< T, std::complex< T > >, HConverter< T, T >, HFilter< T >, HFilter< std::complex< T > >, HInterpolator< T >, HFirDecimator< T >, HIqFirDecimator< T >, HDecimator< T >, HIqDecimator< T >, HSwitch< T >, HRtl2832Reader< T >, HCollector< T >, HCascadedBiQuadFilter< T >, HSoundcardReader< T >, HMux< T >, HMultiplier< T >, HFileReader< T >, HDeMux< T >, HIqMultiplier< T >, HSubtracter< T >, HLinearMixer< T >, HGenerator< T >, HMemoryReader< T >, HNetworkReader< T >, HVfo< T >, HNullReader< T >, HWavReader< T >, and HLocalOscillator< T >.

Read()

template<class T >

virtual int HReader< T >::Read ( T *  dest, size_t  blocksize  )

pure virtual

Read a block of samples

Implemented in HConverter< Tin, Tout >, HInterpolator< T >, HConverter< std::complex< T >, T >, HConverter< T, T >, HFirDecimator< T >, HIqFirDecimator< T >, HFilter< T >, HDecimator< T >, HIqDecimator< T >, HRtl2832Reader< T >, HCollector< T >, HSwitch< T >, HMux< T >, HSoundcardReader< T >, HCascadedBiQuadFilter< T >, HMultiplier< T >, HGenerator< T >, HBreaker< T >, HSubtracter< T >, HDeMux< T >, HIqMultiplier< T >, HLinearMixer< T >, HMemoryReader< T >, HFileReader< T >, HNetworkReader< T >, HNullReader< T >, HConverter< T, std::complex< T > >, and HFilter< std::complex< T > >.

Reader()

template<class T >

HReader<T>* HReader< T >::Reader ( )

inline

Returns a HReader* to this reader

Start()

template<class T >

virtual bool HReader< T >::Start ( )

inlinevirtual

Initialize before first read

Reimplemented in HFilter< T >, HFilter< std::complex< T > >, HInterpolator< T >, HFirDecimator< T >, HIqFirDecimator< T >, HMux< T >, HDecimator< T >, HIqDecimator< T >, HSwitch< T >, HCollector< T >, HDeMux< T >, HCascadedBiQuadFilter< T >, HMultiplier< T >, HIqMultiplier< T >, HSubtracter< T >, HLinearMixer< T >, HFileReader< T >, HMute< T >, HBreaker< T >, HConverter< Tin, Tout >, HConverter< std::complex< T >, T >, HConverter< T, std::complex< T > >, HConverter< T, T >, and HWavReader< T >.

Stop()

template<class T >

virtual bool HReader< T >::Stop ( )

inlinevirtual

Cleanup after last read

Reimplemented in HFilter< T >, HFilter< std::complex< T > >, HInterpolator< T >, HFirDecimator< T >, HIqFirDecimator< T >, HMux< T >, HDecimator< T >, HIqDecimator< T >, HSwitch< T >, HCollector< T >, HDeMux< T >, HCascadedBiQuadFilter< T >, HMultiplier< T >, HFileReader< T >, HIqMultiplier< T >, HSubtracter< T >, HLinearMixer< T >, HMute< T >, HBreaker< T >, HConverter< Tin, Tout >, HConverter< std::complex< T >, T >, HConverter< T, std::complex< T > >, and HConverter< T, T >.

---

The documentation for this class was generated from the following file:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hreader.h
