HVfo< T > Class Template Reference

#include <hvfo.h>

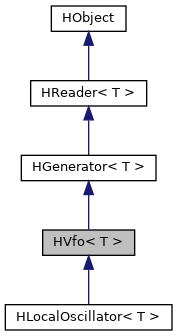

Inheritance diagram for HVfo< T >:

Collaboration diagram for HVfo< T >:

Public Member Functions
	HVfo (H_SAMPLE_RATE rate, int frequency, T amplitude, float phase=0)
void	SetFrequency (int frequency, float phase=0)
bool	Command (HCommand *command)
Public Member Functions inherited from HGenerator< T >
int	Read (T *dest, size_t blocksize)
void	Calculate (int frequency, T amplitude, float phase)
T	Current ()
T	Next ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
virtual bool	Start ()
virtual bool	Stop ()
HReader< T > *	Reader ()
Public Member Functions inherited from HObject
	HObject ()

Additional Inherited Members
Protected Member Functions inherited from HGenerator< T >
	HGenerator (H_SAMPLE_RATE rate, int frequency, T amplitude, float phase=0)
	~HGenerator ()

Detailed Description

template<class T>
class HVfo< T >

Generate a single sine with the given frequency and amplitude at the given sample rate.

The frequency and phase can be changed by calling the SetFrequency() function. Samples are not guaranteed to have a smooth transaction when changing frequency or phase.

Constructor & Destructor Documentation

HVfo()

template<class T >

HVfo< T >::HVfo	(	H_SAMPLE_RATE	rate,
		int	frequency,
		T	amplitude,
		float	phase = 0
	)

Construct a new HVfo running at the given frequency and phase with the given amplitude

Member Function Documentation

Command()

template<class T >

bool HVfo< T >::Command ( HCommand *  command )

inlinevirtual

Execute and/or pass on a command

Reimplemented from HGenerator< T >.

SetFrequency()

template<class T >

void HVfo< T >::SetFrequency	(	int	frequency,
		float	phase = 0
	)

Set the frequency and phase of the vfo

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hvfo.h
• /home/henrik/Git/Hardt/hardt/libhardt/readers/generators/hvfo.cpp
