#include <hcascadedbiquadfilter.h>

Inheritance diagram for HCascadedBiQuadFilter< T >:

[legend]

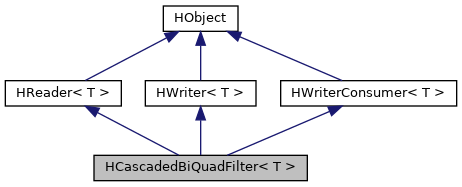

Collaboration diagram for HCascadedBiQuadFilter< T >:

[legend]

Public Member Functions
	HCascadedBiQuadFilter (HWriter< T > writer, float coefficients, int length, size_t blocksize, HProbe< T > *probe=NULL)

	HCascadedBiQuadFilter (HWriterConsumer< T > consumer, float coefficients, int length, size_t blocksize, HProbe< T > *probe=NULL)

	HCascadedBiQuadFilter (HReader< T > reader, float coefficients, int length, size_t blocksize, HProbe< T > *probe=NULL)

	HCascadedBiQuadFilter (HWriter< T > writer, std::vector< float > biquadCoefficients, size_t blocksize, HProbe< T > *probe=NULL)

	HCascadedBiQuadFilter (HWriterConsumer< T > consumer, std::vector< float > biquadCoefficients, size_t blocksize, HProbe< T > *probe=NULL)

	HCascadedBiQuadFilter (HReader< T > reader, std::vector< float > biquadCoefficients, size_t blocksize, HProbe< T > *probe=NULL)

	~HCascadedBiQuadFilter ()

int	Write (T *src, size_t blocksize)

int	Read (T *dest, size_t blocksize)

bool	Start ()

bool	Stop ()

void	SetCoefficients (float *coefficients, int length)

bool	Command (HCommand *command)

Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default

HReader< T > *	Reader ()

Public Member Functions inherited from HObject
	HObject ()

Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default

HWriter< T > *	Writer ()

Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Static Public Member Functions
static HCascadedBiQuadFilter< T > *	Create (HWriter< T > writer, size_t blocksize, char coeffsFilename)

static HCascadedBiQuadFilter< T > *	Create (HWriterConsumer< T > consumer, size_t blocksize, char coeffsFilename)

static HCascadedBiQuadFilter< T > *	Create (HReader< T > reader, size_t blocksize, char coeffsFilename)

Detailed Description

template<class T>
class HCascadedBiQuadFilter< T >

A generic cascaded biquad filter (a number of biquads cascaded efter each other).

Given a set of coefficients, usually calculated by a filterdesign tool - but they can be taken from one or several generic biquads (HHighpassBiQuad, HNotchBiQuad, etc.).

The parameters must be provided in the order: b0,1 b1,1 b2,1 a1,1 a2,1 b0,2 b1,2 b2,2 a1,2 a2,2 b0,... b1,... b2,... a1,... a2,... b0,N b1,N b2,N a1,N a2,N

The coefficients can either be defined as an array in the source code, or come from a file - use the factory method Create() to read such coefficients. (this is practical when you are finetuning a filter)

Examples: saq.cpp.

Constructor & Destructor Documentation

◆ HCascadedBiQuadFilter() [1/6]

template<class T >

HCascadedBiQuadFilter< T >::HCascadedBiQuadFilter	(	HWriter< T > *	writer,
		float *	coefficients,
		int	length,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HCascadedBiQuadFilter

◆ HCascadedBiQuadFilter() [2/6]

template<class T >

HCascadedBiQuadFilter< T >::HCascadedBiQuadFilter	(	HWriterConsumer< T > *	consumer,
		float *	coefficients,
		int	length,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HCascadedBiQuadFilter

◆ HCascadedBiQuadFilter() [3/6]

template<class T >

HCascadedBiQuadFilter< T >::HCascadedBiQuadFilter	(	HReader< T > *	reader,
		float *	coefficients,
		int	length,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HCascadedBiQuadFilter

◆ HCascadedBiQuadFilter() [4/6]

template<class T >

HCascadedBiQuadFilter< T >::HCascadedBiQuadFilter	(	HWriter< T > *	writer,
		std::vector< float * >	biquadCoefficients,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HCascadedBiQuadFilter

◆ HCascadedBiQuadFilter() [5/6]

template<class T >

HCascadedBiQuadFilter< T >::HCascadedBiQuadFilter	(	HWriterConsumer< T > *	consumer,
		std::vector< float * >	biquadCoefficients,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HCascadedBiQuadFilter

◆ HCascadedBiQuadFilter() [6/6]

template<class T >

HCascadedBiQuadFilter< T >::HCascadedBiQuadFilter	(	HReader< T > *	reader,
		std::vector< float * >	biquadCoefficients,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HCascadedBiQuadFilter

◆ ~HCascadedBiQuadFilter()

template<class T >

HCascadedBiQuadFilter< T >::~HCascadedBiQuadFilter

Default destructor

Member Function Documentation

◆ Command()

template<class T >

bool HCascadedBiQuadFilter< T >::Command ( HCommand * command )

inlinevirtual

Execute or carry through a command

Implements HReader< T >.

◆ Create() [1/3]

template<class T >

static HCascadedBiQuadFilter<T>* HCascadedBiQuadFilter< T >::Create	(	HReader< T > *	reader,
		size_t	blocksize,
		char *	coeffsFilename
	)

inlinestatic

Factory method to create a new cascaded filter from the name of a file with coefficients

◆ Create() [2/3]

template<class T >

static HCascadedBiQuadFilter<T>* HCascadedBiQuadFilter< T >::Create	(	HWriter< T > *	writer,
		size_t	blocksize,
		char *	coeffsFilename
	)

inlinestatic

Factory method to create a new cascaded filter from the name of a file with coefficients

◆ Create() [3/3]

template<class T >

static HCascadedBiQuadFilter<T>* HCascadedBiQuadFilter< T >::Create	(	HWriterConsumer< T > *	consumer,
		size_t	blocksize,
		char *	coeffsFilename
	)

inlinestatic

Factory method to create a new cascaded filter from the name of a file with coefficients

◆ Read()

template<class T >

int HCascadedBiQuadFilter< T >::Read	(	T *	dest,
		size_t	blocksize
	)

virtual

Read a block of samples from the filter

Implements HReader< T >.

◆ SetCoefficients()

template<class T >

void HCascadedBiQuadFilter< T >::SetCoefficients	(	float *	coefficients,
		int	length
	)

Set filter coefficients

◆ Start()

template<class T >

bool HCascadedBiQuadFilter< T >::Start

virtual

Prepare filter for operation

Reimplemented from HReader< T >.

◆ Stop()

template<class T >

bool HCascadedBiQuadFilter< T >::Stop

virtual

Shutdown the filter

Reimplemented from HReader< T >.

◆ Write()

template<class T >

int HCascadedBiQuadFilter< T >::Write	(	T *	src,
		size_t	blocksize
	)

virtual

Write a block of samples to the filter

Implements HWriter< T >.

The documentation for this class was generated from the following files:

/home/henrik/Git/Hardt/hardt/libhardt/include/hcascadedbiquadfilter.h
/home/henrik/Git/Hardt/hardt/libhardt/filters/biquads/hcascadedbiquadfilter.cpp
