HIqMultiplier< T > Class Template Reference

#include <hiqmultiplier.h>

Inheritance diagram for HIqMultiplier< T >:

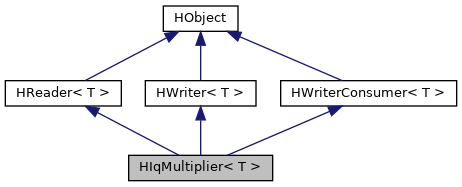

Collaboration diagram for HIqMultiplier< T >:

Public Member Functions
	HIqMultiplier (HReader< T > *reader, H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize, HProbe< T > *probe=NULL)
	HIqMultiplier (HWriter< T > *writer, H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize, HProbe< T > *probe=NULL)
	HIqMultiplier (HWriterConsumer< T > *consumer, H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize, HProbe< T > *probe=NULL)
	~HIqMultiplier ()
void	Init (H_SAMPLE_RATE rate, int frequency, int oscillatorAmplitude, size_t blocksize)
int	Read (T *dest, size_t blocksize)
int	Write (T *src, size_t blocksize)
void	SetWriter (HWriter< T > *writer)
bool	Start ()
bool	Stop ()
void	SetFrequency (int frequency)
void	Mix (T *src, T *dest, size_t blocksize)
bool	Command (HCommand *command)
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Detailed Description

template<class T>
class HIqMultiplier< T >

IQ multiplier (unlinear mixer).

Will mix the input signal with a localoscillator signal thus producing (Tin + Tlo) and (Tin - Tlo)

The localoscillator frequency can be changed by calling SetFrequency(). behaviour while the frequency is transitioning is undefined, if you make large adjustments you may want to reduce the input level while setting the new frequency to avoid clicks or noise (check if it is a problem in your actual case)

Constructor & Destructor Documentation

HIqMultiplier() [1/3]

template<class T >

HIqMultiplier< T >::HIqMultiplier	(	HReader< T > *	reader,
		H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HIqMultiplier (frequency mixer)

HIqMultiplier() [2/3]

template<class T >

HIqMultiplier< T >::HIqMultiplier	(	HWriter< T > *	writer,
		H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HIqMultiplier (frequency mixer)

HIqMultiplier() [3/3]

template<class T >

HIqMultiplier< T >::HIqMultiplier	(	HWriterConsumer< T > *	consumer,
		H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HIqMultiplier (frequency mixer)

~HIqMultiplier()

template<class T >

HIqMultiplier< T >::~HIqMultiplier

Default destructor

Member Function Documentation

Command()

template<class T >

bool HIqMultiplier< T >::Command ( HCommand *  command )

inlinevirtual

Execute or carry through a command

Implements HReader< T >.

Init()

template<class T >

void HIqMultiplier< T >::Init	(	H_SAMPLE_RATE	rate,
		int	frequency,
		int	oscillatorAmplitude,
		size_t	blocksize
	)

Common initialization tasks

Mix()

template<class T >

void HIqMultiplier< T >::Mix	(	T *	src,
		T *	dest,
		size_t	blocksize
	)

Mix two signals

Read()

template<class T >

int HIqMultiplier< T >::Read ( T *  dest, size_t  blocksize  )

virtual

Read a block of samples

Implements HReader< T >.

SetFrequency()

template<class T >

void HIqMultiplier< T >::SetFrequency

(

int

frequency

)

Set the frequency of the local oscillator that feeds one of the inputs of the mixer

SetWriter()

template<class T >

void HIqMultiplier< T >::SetWriter ( HWriter< T > *  writer )

inlinevirtual

Set writer

Implements HWriterConsumer< T >.

Start()

template<class T >

bool HIqMultiplier< T >::Start

virtual

Initialize before first read

Reimplemented from HReader< T >.

Stop()

template<class T >

bool HIqMultiplier< T >::Stop

virtual

Cleanup after last read

Reimplemented from HReader< T >.

Write()

template<class T >

int HIqMultiplier< T >::Write ( T *  src, size_t  blocksize  )

virtual

Write a block of samples

Implements HWriter< T >.

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hiqmultiplier.h
• /home/henrik/Git/Hardt/hardt/libhardt/mixers/hiqmultiplier.cpp
