HConverter< Tin, Tout > Class Template Reference

#include <hconverter.h>

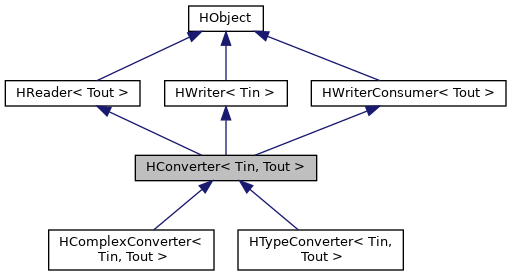

Inheritance diagram for HConverter< Tin, Tout >:

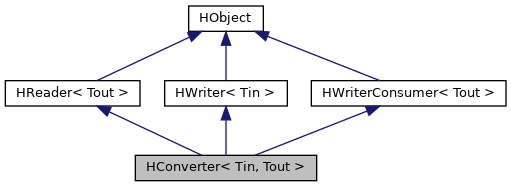

Collaboration diagram for HConverter< Tin, Tout >:

Public Member Functions
bool	Start ()
bool	Stop ()
	~HConverter ()
int	Read (Tout *dest, size_t blocksize)
int	Write (Tin *src, size_t blocksize)
virtual int	Convert (Tin *src, Tout *dest, size_t blocksize)=0
void	SetWriter (HWriter< Tout > *writer)
bool	Command (HCommand *command)
Public Member Functions inherited from HReader< Tout >
virtual	~HReader ()=default
HReader< Tout > *	Reader ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< Tin >
virtual	~HWriter ()=default
HWriter< Tin > *	Writer ()
Public Member Functions inherited from HWriterConsumer< Tout >
HWriterConsumer< Tout > *	Consumer ()

Protected Member Functions
	HConverter (HReader< Tin > *reader, size_t blocksizeIn, size_t blocksizeOut, HProbe< Tout > *probe=nullptr)
	HConverter (HWriter< Tout > *writer, size_t blocksizeIn, size_t blocksizeOut, HProbe< Tout > *probe=nullptr)
	HConverter (HWriterConsumer< Tin > *consumer, size_t blocksizeIn, size_t blocksizeOut, HProbe< Tout > *probe=nullptr)

Detailed Description

template<class Tin, class Tout>
class HConverter< Tin, Tout >

Base class for Converters that convert one type to another.

This class can not be instantiated directly but must be inherited and the pure virtual function Convert() implemented.

Constructor & Destructor Documentation

HConverter() [1/3]

template<class Tin , class Tout >

HConverter< Tin, Tout >::HConverter ( HReader< Tin > *  reader, size_t  blocksizeIn, size_t  blocksizeOut, HProbe< Tout > *  probe = nullptr  )

inlineprotected

Construct a new HConverter that reads from a reader

Parameters

reader	Upstream reader
blocksizeIn	Number of input samples
blocksizeOut	Number of output samples
probe	Probe

HConverter() [2/3]

template<class Tin , class Tout >

HConverter< Tin, Tout >::HConverter ( HWriter< Tout > *  writer, size_t  blocksizeIn, size_t  blocksizeOut, HProbe< Tout > *  probe = nullptr  )

inlineprotected

Construct a new HConverter that writes to a writer

Parameters

writer	Downstream writer
blocksizeIn	Number of input samples
blocksizeOut	Number of output samples
probe	Probe

HConverter() [3/3]

template<class Tin , class Tout >

HConverter< Tin, Tout >::HConverter ( HWriterConsumer< Tin > *  consumer, size_t  blocksizeIn, size_t  blocksizeOut, HProbe< Tout > *  probe = nullptr  )

inlineprotected

Construct a new HConverter that registers with an upstream writer

Parameters

consumer	Upstream consumer
blocksizeIn	Number of input samples
blocksizeOut	Number of output samples
probe	Probe

~HConverter()

template<class Tin , class Tout >

HConverter< Tin, Tout >::~HConverter ( )

inline

Default destructor

Member Function Documentation

Command()

template<class Tin , class Tout >

bool HConverter< Tin, Tout >::Command ( HCommand *  command )

inlinevirtual

Transport a command to the next/previous component in the chain

Implements HReader< Tout >.

Convert()

template<class Tin , class Tout >

virtual int HConverter< Tin, Tout >::Convert ( Tin *  src, Tout *  dest, size_t  blocksize  )

pure virtual

Convert a block of samples

Read()

template<class Tin , class Tout >

int HConverter< Tin, Tout >::Read ( Tout *  dest, size_t  blocksize  )

inlinevirtual

Read a block of converted samples

Parameters

dest	Destination buffer
blocksize	Number of samples to read

Returns

Number of samples read

Implements HReader< Tout >.

SetWriter()

template<class Tin , class Tout >

void HConverter< Tin, Tout >::SetWriter ( HWriter< Tout > *  writer )

inlinevirtual

Implements HWriterConsumer::SetWriter()

Implements HWriterConsumer< Tout >.

Start()

template<class Tin , class Tout >

bool HConverter< Tin, Tout >::Start ( )

inlinevirtual

Initialize before first read or write

Reimplemented from HReader< Tout >.

Stop()

template<class Tin , class Tout >

bool HConverter< Tin, Tout >::Stop ( )

inlinevirtual

Cleanup after last read or write

Reimplemented from HReader< Tout >.

Write()

template<class Tin , class Tout >

int HConverter< Tin, Tout >::Write ( Tin *  src, size_t  blocksize  )

inlinevirtual

Write a block of samples to convert

Parameters

src	Source buffer
blocksize	Number of input samples

Returns

Number of samples written

Implements HWriter< Tin >.

---

The documentation for this class was generated from the following file:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hconverter.h
