HDeMux< T > Class Template Reference

#include <hdemux.h>

Inheritance diagram for HDeMux< T >:

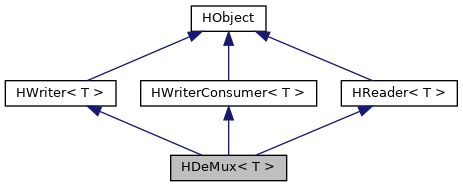

Collaboration diagram for HDeMux< T >:

Public Member Functions
	HDeMux (std::vector< HWriter< T > * > writers, size_t blocksize)
	HDeMux (HWriterConsumer< T > *consumer, size_t blocksize)
	HDeMux (HReader< T > *reader, int readers, size_t blocksize)
	~HDeMux ()
int	Write (T *src, size_t blocksize)
int	Read (T *dest, size_t blocksize)
void	SetWriter (HWriter< T > *writer)
bool	Command (HCommand *command)
bool	Start ()
bool	Stop ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()

Detailed Description

template<class T>
class HDeMux< T >

De-multiplex a stream of samples. The incomming samples are written round-robin to the writer given in the list when constructing the object.

Ex: Having sampled a signal from 2 channels, writing the stream of samples from soundcard to an instanse of this class initiaized with two writers - would result in the two writers receaving either the left or the right samples. Another use is to split an IQ stream into an I and Q branch.

The number of samples per block written to the output writers will be half the number of incomming samples in the above example.

Constructor & Destructor Documentation

HDeMux() [1/3]

template<class T >

HDeMux< T >::HDeMux	(	std::vector< HWriter< T > * >	writers,
		size_t	blocksize
	)

Construct a new HDemux object that writes to a writer

HDeMux() [2/3]

template<class T >

HDeMux< T >::HDeMux	(	HWriterConsumer< T > *	consumer,
		size_t	blocksize
	)

Construct a new HDemux object that registers with an upstream writer

HDeMux() [3/3]

template<class T >

HDeMux< T >::HDeMux	(	HReader< T > *	reader,
		int	readers,
		size_t	blocksize
	)

Construct a new HDemux object that reads from a reader

~HDeMux()

template<class T >

HDeMux< T >::~HDeMux

Default destructor

Member Function Documentation

Command()

template<class T >

bool HDeMux< T >::Command ( HCommand *  command )

inlinevirtual

Forward a command

Implements HReader< T >.

Read()

template<class T >

int HDeMux< T >::Read ( T *  dest, size_t  blocksize  )

virtual

Read a block of samples

Implements HReader< T >.

SetWriter()

template<class T >

void HDeMux< T >::SetWriter ( HWriter< T > *  writer )

inlinevirtual

Implements HWriterConsumer::SetWriter()

Implements HWriterConsumer< T >.

Start()

template<class T >

bool HDeMux< T >::Start ( )

inlinevirtual

Initialize before first read/write

Reimplemented from HReader< T >.

Stop()

template<class T >

bool HDeMux< T >::Stop ( )

inlinevirtual

Cleanup after last read/write

Reimplemented from HReader< T >.

Write()

template<class T >

int HDeMux< T >::Write ( T *  src, size_t  blocksize  )

virtual

Write a block of samples

Implements HWriter< T >.

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hdemux.h
• /home/henrik/Git/Hardt/hardt/libhardt/components/hdemux.cpp
