HMux< T > Class Template Reference

#include <hmux.h>

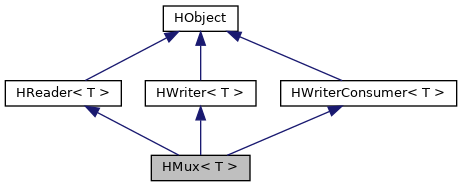

Inheritance diagram for HMux< T >:

Collaboration diagram for HMux< T >:

Public Member Functions
	HMux (std::vector< HReader< T > * > readers, size_t blocksize, bool duplex=false)
	HMux (HWriter< T > *writer, int writers, size_t blocksize, bool duplex=false)
	HMux (std::vector< HWriterConsumer< T > * > consumers, size_t blocksize, bool duplex=false)
	~HMux ()
int	Read (T *dest, size_t blocksize)
int	Write (T *src, size_t blocksize)
bool	Command (HCommand *command)
void	SetWriter (HWriter< T > *writer)
bool	Start ()
bool	Stop ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Detailed Description

template<class T>
class HMux< T >

Taking a list of readers, the read from each reader and interlace the samples - then return the resulting buffer. (or await writes from a number of writers, then multiplex the incomming data and write to the next writer)

Ex: Having processed the left and right part of a stereo signal, a HMux object is then created with the left and right HReader objects. The HMux object will then read the left and right samples, interlace them and return a set of samples ready to output from a 2-channel soundcard.

IQ samples having been processed in parallel branches may also require multiplexing again to end up with an IQ signal (for detection or other reasons).

Do note that the output from the multiplexer will be the total number of samples read or written by the upstream readers or writers. Having two readers that each returns 1024 samples will yield a read of 2048 samples.

A special use of the multiplexer is to have a single stream (reader og writer) and then multiplexing the input data into two identical channels. This is usefull when you want to output a mono stream as a dual-channel ("stereo") headset.

Constructor & Destructor Documentation

HMux() [1/3]

template<class T >

HMux< T >::HMux	(	std::vector< HReader< T > * >	readers,
		size_t	blocksize,
		bool	duplex = false
	)

Construct a new HMux

Parameters

readers	A list o reader to read from
blocksize	Number of blocks to read
duplex	If set to true, the number of readers must be 1. Read a single block, then duplicate the block and output same block as two channels multiplexed (mono->stereo for mono input)

HMux() [2/3]

template<class T >

HMux< T >::HMux	(	HWriter< T > *	writer,
		int	writers,
		size_t	blocksize,
		bool	duplex = false
	)

Construct a new HMux

Parameters

writer	The writer to write the final multiplexed signal to
writers	Number of writers, writing to this multiplexer
blocksize	Number of blocks to write
duplex	If set to true, the number of writers must be 1. When a single block is written, then duplicate the block and output same block as two channels multiplexed (mono->stereo for mono input)

HMux() [3/3]

template<class T >

HMux< T >::HMux	(	std::vector< HWriterConsumer< T > * >	consumers,
		size_t	blocksize,
		bool	duplex = false
	)

Construct a new HMux

Parameters

consumers	The upstream consumers
blocksize	Number of blocks to write
duplex	If set to true, the number of upstream writers must be 1. When a single block is written, then duplicate the block and output same block as two channels multiplexed (mono->stereo for mono input)

~HMux()

template<class T >

HMux< T >::~HMux

Default destructor

Member Function Documentation

Command()

template<class T >

bool HMux< T >::Command ( HCommand *  command )

inlinevirtual

Execute or carry through a command

Implements HReader< T >.

Read()

template<class T >

int HMux< T >::Read ( T *  dest, size_t  blocksize  )

virtual

Read a block of samples

Implements HReader< T >.

SetWriter()

template<class T >

void HMux< T >::SetWriter ( HWriter< T > *  writer )

inlinevirtual

Implements HWriterConsumer::SetWriter()

Implements HWriterConsumer< T >.

Start()

template<class T >

bool HMux< T >::Start ( )

inlinevirtual

Start the multiplexer

Reimplemented from HReader< T >.

Stop()

template<class T >

bool HMux< T >::Stop ( )

inlinevirtual

Stop the multiplexer

Reimplemented from HReader< T >.

Write()

template<class T >

int HMux< T >::Write ( T *  src, size_t  blocksize  )

virtual

Write a block of samples

Implements HWriter< T >.

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hmux.h
• /home/henrik/Git/Hardt/hardt/libhardt/components/hmux.cpp
