#include <hbaseband.h>
Inheritance diagram for HBaseband< T >:

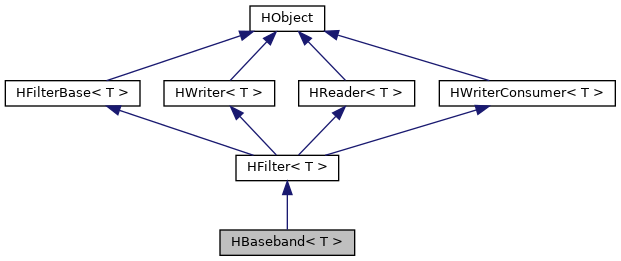

Collaboration diagram for HBaseband< T >:
Public Member Functions | |
| HBaseband (HWriter< T > *writer, H_SAMPLE_RATE rate, int center, int width, size_t blocksize, HProbe< T > *probe=NULL) | |
| HBaseband (HWriterConsumer< T > *consumer, H_SAMPLE_RATE rate, int center, int width, size_t blocksize, HProbe< T > *probe=NULL) | |
| HBaseband (HReader< T > *reader, H_SAMPLE_RATE rate, int center, int width, size_t blocksize, HProbe< T > *probe=NULL) | |
| ~HBaseband () | |
| virtual void | Filter (T *src, T *dest, size_t blocksize) |
| void | SetSegment (int center, int width) |
 Public Member Functions inherited from HFilter< T > | |
| ~HFilter () | |
| int | Write (T *src, size_t blocksize) |
| int | Read (T *dest, size_t blocksize) |
| bool | Start () |
| bool | Stop () |
| bool | Command (HCommand *command) |
| void | Enable () |
| void | Disable () |
| bool | GetEnabled () |
| Public Member Functions inherited from HObject | |
| HObject () | |
| Public Member Functions inherited from HWriter< T > | |
| virtual | ~HWriter ()=default |
| HWriter< T > * | Writer () |
| Public Member Functions inherited from HReader< T > | |
| virtual | ~HReader ()=default |
| HReader< T > * | Reader () |
| Public Member Functions inherited from HWriterConsumer< T > | |
| HWriterConsumer< T > * | Consumer () |
Additional Inherited Members | |
| Static Public Member Functions inherited from HFilter< T > | |
| static std::vector< float > | ReadCoeffsFromFile (std::string filename) |
| static std::vector< float > | ReadCoeffsFromFile (char *filename) |
| Protected Member Functions inherited from HFilter< T > | |
| HFilter (HWriter< T > *writer, size_t blocksize, HProbe< T > *probe=NULL) | |
| HFilter (HWriterConsumer< T > *consumer, size_t blocksize, HProbe< T > *probe=NULL) | |
| HFilter (HReader< T > *reader, size_t blocksize, HProbe< T > *probe=NULL) | |
| void | SetWriter (HWriter< T > *writer) |
| Protected Attributes inherited from HFilter< T > | |
| int | _blocksize |
Detailed Description
template<class T>
class HBaseband< T >
A filter that translates a segment in the spectrum down to baseband and filters away everything above the baseband segment
Constructor & Destructor Documentation
◆ HBaseband() [1/3]
template<class T >
| HBaseband< T >::HBaseband | ( | HWriter< T > * | writer, |
| H_SAMPLE_RATE | rate, | ||
| int | center, | ||
| int | width, | ||
| size_t | blocksize, | ||
| HProbe< T > * | probe = NULL |
||
| ) |
Construct a new HBaseband filter that writes to a writer
◆ HBaseband() [2/3]
template<class T >
| HBaseband< T >::HBaseband | ( | HWriterConsumer< T > * | consumer, |
| H_SAMPLE_RATE | rate, | ||
| int | center, | ||
| int | width, | ||
| size_t | blocksize, | ||
| HProbe< T > * | probe = NULL |
||
| ) |
Construct a new HBaseband filter that registers with an upstream writer
◆ HBaseband() [3/3]
template<class T >
| HBaseband< T >::HBaseband | ( | HReader< T > * | reader, |
| H_SAMPLE_RATE | rate, | ||
| int | center, | ||
| int | width, | ||
| size_t | blocksize, | ||
| HProbe< T > * | probe = NULL |
||
| ) |
Construct a new HBaseband filter that reads from a reader
◆ ~HBaseband()
Member Function Documentation
◆ Filter()
template<class T >
|
virtual |
Run a block of samples through the gain filter
Implements HFilter< T >.
◆ SetSegment()
template<class T >
| void HBaseband< T >::SetSegment | ( | int | center, |
| int | width | ||
| ) |
Set a new baseband segment
The documentation for this class was generated from the following files:
- /home/henrik/Git/Hardt/hardt/libhardt/include/hbaseband.h
- /home/henrik/Git/Hardt/hardt/libhardt/filters/hbaseband.cpp
