Inheritance diagram for HClickRemovingFilter< T >:

[legend]

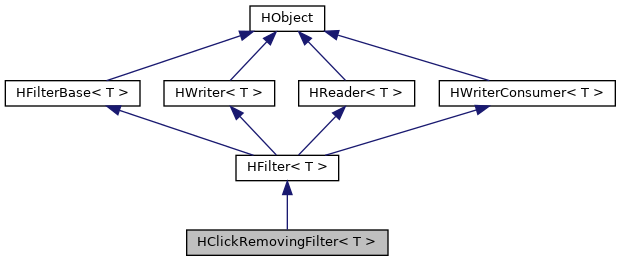

Collaboration diagram for HClickRemovingFilter< T >:

[legend]

Public Member Functions
	HClickRemovingFilter (HWriter< T > writer, size_t blocksize, HProbe< T > probe=NULL)

	HClickRemovingFilter (HWriterConsumer< T > consumer, size_t blocksize, HProbe< T > probe=NULL)

	HClickRemovingFilter (HReader< T > reader, size_t blocksize, HProbe< T > probe=NULL)

	~HClickRemovingFilter ()

virtual void	Filter (T src, T dest, size_t blocksize)

Public Member Functions inherited from HFilter< T >
	~HFilter ()

int	Write (T *src, size_t blocksize)

int	Read (T *dest, size_t blocksize)

bool	Start ()

bool	Stop ()

bool	Command (HCommand *command)

void	Enable ()

void	Disable ()

bool	GetEnabled ()

Public Member Functions inherited from HObject
	HObject ()

Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default

HWriter< T > *	Writer ()

Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default

HReader< T > *	Reader ()

Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Additional Inherited Members
Static Public Member Functions inherited from HFilter< T >
static std::vector< float >	ReadCoeffsFromFile (std::string filename)

static std::vector< float >	ReadCoeffsFromFile (char *filename)

Protected Member Functions inherited from HFilter< T >
	HFilter (HWriter< T > writer, size_t blocksize, HProbe< T > probe=NULL)

	HFilter (HWriterConsumer< T > consumer, size_t blocksize, HProbe< T > probe=NULL)

	HFilter (HReader< T > reader, size_t blocksize, HProbe< T > probe=NULL)

void	SetWriter (HWriter< T > *writer)

Protected Attributes inherited from HFilter< T >
int	_blocksize

Detailed Description

A filter providing click removal by changing samples that exceed the average sample value by 50% to 0

Constructor & Destructor Documentation

template<class T >

HClickRemovingFilter< T >::HClickRemovingFilter	(	HWriter< T > *	writer,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HClickRemovingFilter object that writes to a writer

template<class T >

HClickRemovingFilter< T >::HClickRemovingFilter	(	HWriterConsumer< T > *	consumer,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HClickRemovingFilter object that registers with an upstream writer

template<class T >

HClickRemovingFilter< T >::HClickRemovingFilter	(	HReader< T > *	reader,
		size_t	blocksize,
		HProbe< T > *	probe = `NULL`
	)

Construct a new HClickRemovingFilter object that reads from a reader

template<class T >

Default destructor

template<class T >

void HClickRemovingFilter< T >::Filter	(	T *	src,
		T *	dest,
		size_t	blocksize
	)

virtual

Run a block of samples through the filter

The documentation for this class was generated from the following files:
