HDelay< T > Class Template Reference

#include <hdelay.h>

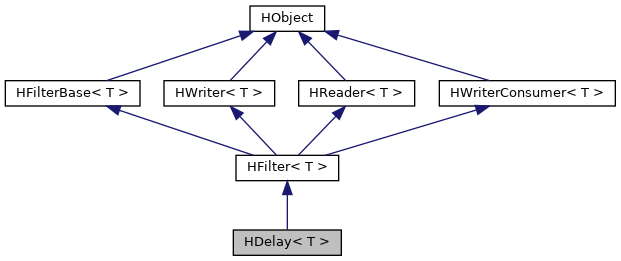

Inheritance diagram for HDelay< T >:

Collaboration diagram for HDelay< T >:

Public Member Functions
	HDelay (HWriter< T > *writer, size_t blocksize, H_SAMPLE_RATE rate, int seconds, HProbe< T > *probe=NULL)
	HDelay (HWriterConsumer< T > *consumer, size_t blocksize, H_SAMPLE_RATE rate, int seconds, HProbe< T > *probe=NULL)
	HDelay (HReader< T > *reader, size_t blocksize, H_SAMPLE_RATE rate, int seconds, HProbe< T > *probe=NULL)
	HDelay (HWriter< T > *writer, size_t blocksize, int blocks, HProbe< T > *probe=NULL)
	HDelay (HWriterConsumer< T > *consumer, size_t blocksize, int blocks, HProbe< T > *probe=NULL)
	HDelay (HReader< T > *reader, size_t blocksize, int blocks, HProbe< T > *probe=NULL)
	~HDelay ()
virtual void	Filter (T *src, T *dest, size_t blocksize)
Public Member Functions inherited from HFilter< T >
	~HFilter ()
int	Write (T *src, size_t blocksize)
int	Read (T *dest, size_t blocksize)
bool	Start ()
bool	Stop ()
bool	Command (HCommand *command)
void	Enable ()
void	Disable ()
bool	GetEnabled ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Additional Inherited Members
Static Public Member Functions inherited from HFilter< T >
static std::vector< float >	ReadCoeffsFromFile (std::string filename)
static std::vector< float >	ReadCoeffsFromFile (char *filename)
Protected Member Functions inherited from HFilter< T >
	HFilter (HWriter< T > *writer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HWriterConsumer< T > *consumer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HReader< T > *reader, size_t blocksize, HProbe< T > *probe=NULL)
void	SetWriter (HWriter< T > *writer)
Protected Attributes inherited from HFilter< T >
int	_blocksize

Detailed Description

template<class T>
class HDelay< T >

A filter providing a delay of the input samples

Constructor & Destructor Documentation

HDelay() [1/6]

template<class T >

HDelay< T >::HDelay	(	HWriter< T > *	writer,
		size_t	blocksize,
		H_SAMPLE_RATE	rate,
		int	seconds,
		HProbe< T > *	probe = NULL
	)

Construct a new HDelay object that writes to a writer

Parameters

writer	Downstream writer
blocksize	Blocksize
rate	Sample rate used
seconds	Seconds to delay the input
probe	Probe

HDelay() [2/6]

template<class T >

HDelay< T >::HDelay	(	HWriterConsumer< T > *	consumer,
		size_t	blocksize,
		H_SAMPLE_RATE	rate,
		int	seconds,
		HProbe< T > *	probe = NULL
	)

Construct a new HDelay object that registers with an upstream writer

Parameters

consumer	Upstream consumer
blocksize	Blocksize
rate	Sample rate used
seconds	Seconds to delay the input
probe	Probe

HDelay() [3/6]

template<class T >

HDelay< T >::HDelay	(	HReader< T > *	reader,
		size_t	blocksize,
		H_SAMPLE_RATE	rate,
		int	seconds,
		HProbe< T > *	probe = NULL
	)

Construct a new HDelay object that reads from a reader

Parameters

reader	Upstream reader
blocksize	Blocksize
rate	Sample rate used
seconds	Seconds to delay the input
probe	Probe

HDelay() [4/6]

template<class T >

HDelay< T >::HDelay	(	HWriter< T > *	writer,
		size_t	blocksize,
		int	blocks,
		HProbe< T > *	probe = NULL
	)

Construct a new HDelay object that writes to a writer

Parameters

writer	Downstream writer
blocksize	Blocksize
blocks	Number of blocks to delay
probe	Probe

HDelay() [5/6]

template<class T >

HDelay< T >::HDelay	(	HWriterConsumer< T > *	consumer,
		size_t	blocksize,
		int	blocks,
		HProbe< T > *	probe = NULL
	)

Construct a new HDelay object that registers with an upstream writer

Parameters

consumer	Upstream consumer
blocksize	Blocksize
blocks	Number of blocks to delay
probe	Probe

HDelay() [6/6]

template<class T >

HDelay< T >::HDelay	(	HReader< T > *	reader,
		size_t	blocksize,
		int	blocks,
		HProbe< T > *	probe = NULL
	)

Construct a new HDelay object that reads from a reader

Parameters

reader	Upstream reader
blocksize	Blocksize
blocks	Number of blocks to delay
probe	Probe

~HDelay()

template<class T >

HDelay< T >::~HDelay

Default destructor

Member Function Documentation

Filter()

template<class T >

void HDelay< T >::Filter ( T *  src, T *  dest, size_t  blocksize  )

virtual

Run a block of samples through the gain filter

Implements HFilter< T >.

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hdelay.h
• /home/henrik/Git/Hardt/hardt/libhardt/filters/hdelay.cpp
