HIqFirFilter< T > Class Template Reference

#include <hiqfirfilter.h>

Inheritance diagram for HIqFirFilter< T >:

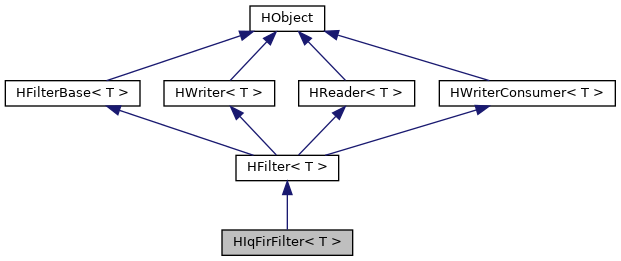

Collaboration diagram for HIqFirFilter< T >:

Public Member Functions
	HIqFirFilter (HWriter< T > *writer, float *coefficients, int length, size_t blocksize, HProbe< T > *probe=NULL)
	HIqFirFilter (HWriterConsumer< T > *consumer, float *coefficients, int length, size_t blocksize, HProbe< T > *probe=NULL)
	HIqFirFilter (HReader< T > *reader, float *coefficients, int length, size_t blocksize, HProbe< T > *probe=NULL)
	~HIqFirFilter ()
void	Filter (T *src, T *dest, size_t blocksize)
void	SetCoefficients (float *coefficients, int length)
std::vector< float >	GetCoefficients ()
Public Member Functions inherited from HFilter< T >
	~HFilter ()
int	Write (T *src, size_t blocksize)
int	Read (T *dest, size_t blocksize)
bool	Start ()
bool	Stop ()
bool	Command (HCommand *command)
void	Enable ()
void	Disable ()
bool	GetEnabled ()
Public Member Functions inherited from HObject
	HObject ()
Public Member Functions inherited from HWriter< T >
virtual	~HWriter ()=default
HWriter< T > *	Writer ()
Public Member Functions inherited from HReader< T >
virtual	~HReader ()=default
HReader< T > *	Reader ()
Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Static Public Member Functions
static HIqFirFilter< T > *	Create (HWriter< T > *writer, size_t blocksize, char *coeffsFilename)
static HIqFirFilter< T > *	Create (HWriterConsumer< T > *consumer, size_t blocksize, char *coeffsFilename)
static HIqFirFilter< T > *	Create (HReader< T > *reader, size_t blocksize, char *coeffsFilename)
Static Public Member Functions inherited from HFilter< T >
static std::vector< float >	ReadCoeffsFromFile (std::string filename)
static std::vector< float >	ReadCoeffsFromFile (char *filename)

Additional Inherited Members
Protected Member Functions inherited from HFilter< T >
	HFilter (HWriter< T > *writer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HWriterConsumer< T > *consumer, size_t blocksize, HProbe< T > *probe=NULL)
	HFilter (HReader< T > *reader, size_t blocksize, HProbe< T > *probe=NULL)
void	SetWriter (HWriter< T > *writer)
Protected Attributes inherited from HFilter< T >
int	_blocksize

Detailed Description

template<class T>
class HIqFirFilter< T >

A generic FIR-type filter.

When created, a list of coefficients must be provided. The coefficients is expected to be the normalized and scaled coefficients.

Coefficients must be provided in the order a0, ..., aN

Constructor & Destructor Documentation

HIqFirFilter() [1/3]

template<class T >

HIqFirFilter< T >::HIqFirFilter	(	HWriter< T > *	writer,
		float *	coefficients,
		int	length,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HIqFirFilter that writes to a writer

HIqFirFilter() [2/3]

template<class T >

HIqFirFilter< T >::HIqFirFilter	(	HWriterConsumer< T > *	consumer,
		float *	coefficients,
		int	length,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HIqFirFilter that registers with an upstream writer

HIqFirFilter() [3/3]

template<class T >

HIqFirFilter< T >::HIqFirFilter	(	HReader< T > *	reader,
		float *	coefficients,
		int	length,
		size_t	blocksize,
		HProbe< T > *	probe = NULL
	)

Construct a new HIqFirFilter that reads from a reader

~HIqFirFilter()

template<class T >

HIqFirFilter< T >::~HIqFirFilter

Default destructor

Member Function Documentation

Create() [1/3]

template<class T >

static HIqFirFilter<T>* HIqFirFilter< T >::Create ( HReader< T > *  reader, size_t  blocksize, char *  coeffsFilename  )

inlinestatic

Factory function to create a new HIqFirFilter that reads from a reader

Create() [2/3]

template<class T >

static HIqFirFilter<T>* HIqFirFilter< T >::Create ( HWriter< T > *  writer, size_t  blocksize, char *  coeffsFilename  )

inlinestatic

Factory function to create a new HIqFirFilter that writes to a writer

Create() [3/3]

template<class T >

static HIqFirFilter<T>* HIqFirFilter< T >::Create ( HWriterConsumer< T > *  consumer, size_t  blocksize, char *  coeffsFilename  )

inlinestatic

Factory function to create a new HIqFirFilter that registers with an upstream writer

Filter()

template<class T >

void HIqFirFilter< T >::Filter ( T *  src, T *  dest, size_t  blocksize  )

virtual

Run a block of samples through the filter

Implements HFilter< T >.

GetCoefficients()

template<class T >

std::vector<float> HIqFirFilter< T >::GetCoefficients ( )

inline

Get the filter coefficients

SetCoefficients()

template<class T >

void HIqFirFilter< T >::SetCoefficients	(	float *	coefficients,
		int	length
	)

Set the filter coefficients

---

The documentation for this class was generated from the following files:

• /home/henrik/Git/Hardt/hardt/libhardt/include/hiqfirfilter.h
• /home/henrik/Git/Hardt/hardt/libhardt/filters/hiqfirfilter.cpp
