#include <hprocessor.h>

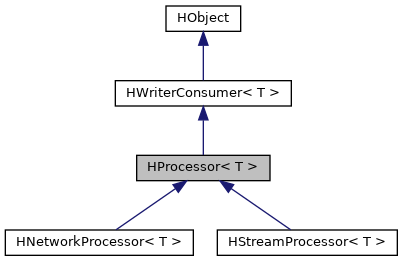

Inheritance diagram for HProcessor< T >:

[legend]

Collaboration diagram for HProcessor< T >:

Public Member Functions
int	Read (T *dest, int blocksize)

int	Write (T *src, int blocksize)

HReader< T > *	GetReader ()

HWriter< T > *	GetWriter ()

virtual void	Run (long unsigned int blocks=0)

virtual void	Halt ()

bool	Command (H_COMMAND_CLASS commandClass, H_COMMAND_OPCODE commandOpcode, int32_t value)

bool	Command (H_COMMAND_CLASS commandClass, H_COMMAND_OPCODE commandOpcode, int16_t length, void *content)

bool	Command (H_COMMAND_CLASS commandClass, H_COMMAND_OPCODE commandOpcode, bool state)

virtual bool	Command (H_COMMAND_CLASS commandClass, H_COMMAND_OPCODE commandOpcode, int16_t length, HCommandData data)=0

HMetrics *	GetMetrics ()

Public Member Functions inherited from HWriterConsumer< T >
HWriterConsumer< T > *	Consumer ()

Public Member Functions inherited from HObject
	HObject ()

Protected Member Functions
	HProcessor (HWriter< T > writer, HReader< T > reader, size_t blocksize, bool *terminationToken)

	HProcessor (HReader< T > reader, size_t blocksize, bool terminationToken)

	~HProcessor ()

void	SetWriter (HWriter< T > *writer)

Protected Attributes
HWriter< T > *	_writer

HReader< T > *	_reader

Detailed Description

template<class T>
class HProcessor< T >

The processor makes a Hardt application tick, it reads from a given reader component and writes the data to a writer class.

This allows you to split your DSP chain into one or more readers, and one or more writers. Readers sort of 'pull' data from reader endpoints and writers 'push' data to writer endpoints (typical a HOutput type), but it can also be a HNullWriter if you dont need to have the output.

When you have created your readers and writers, then create a processor with the last reader and first writer and then call Run() on the processor.

A processor will stop when it receives a zero-length read or if you call the Halt() method, or the bool variable pointed to by the 'terminationToken' parameter of the constructor is set to true (especially usefull if you have multiple threads or does signal handling).

Constructor & Destructor Documentation

◆ HProcessor() [1/2]

template<class T >

HProcessor< T >::HProcessor	(	HWriter< T > *	writer,
		HReader< T > *	reader,
		size_t	blocksize,
		bool *	terminationToken
	)

protected

Construct a new HProcessor

Parameters

writer	The writer
reader	The reader
blocksize	Number of samples to read and write per cycle
terminationToken	The termination token. Set to true to halt the processor

◆ HProcessor() [2/2]

template<class T >

HProcessor< T >::HProcessor	(	HReader< T > *	reader,
		size_t	blocksize,
		bool *	terminationToken
	)

protected

Construct a new HProcessor

Parameters

reader	The reader
blocksize	Number of samples to read and write per cycle
terminationToken	The termination token. Set to true to halt the processor

◆ ~HProcessor()

template<class T >

HProcessor< T >::~HProcessor

protected

Default destructor

Member Function Documentation

◆ Command() [1/4]

template<class T >

bool HProcessor< T >::Command	(	H_COMMAND_CLASS	commandClass,
		H_COMMAND_OPCODE	commandOpcode,
		bool	state
	)

inline

Send a command to the reader and writer chain of this processor

Parameters

commandClass	Class of command
commandOpcode	Opcode of command
state	Bool value to send as the data

Returns: True if the command was executed, false otherwise

◆ Command() [2/4]

template<class T >

virtual bool HProcessor< T >::Command	(	H_COMMAND_CLASS	commandClass,
		H_COMMAND_OPCODE	commandOpcode,
		int16_t	length,
		HCommandData	data
	)

pure virtual

Send a command to the reader and writer chain of this processor

Parameters

commandClass	Class of command
commandOpcode	Opcode of command
length	The command data length (zero for int and bool values)
data	The command data to send

Returns: True if the command was executed, false otherwise

Implemented in HNetworkProcessor< T >, and HStreamProcessor< T >.

◆ Command() [3/4]

template<class T >

bool HProcessor< T >::Command	(	H_COMMAND_CLASS	commandClass,
		H_COMMAND_OPCODE	commandOpcode,
		int16_t	length,
		void *	content
	)

inline

Send a command to the reader and writer chain of this processor

Parameters

commandClass	Class of command
commandOpcode	Opcode of command
length	Length of the data pointed to by 'content'
content	void* to the data to send as the data

Returns: True if the command was executed, false otherwise

◆ Command() [4/4]

template<class T >

bool HProcessor< T >::Command	(	H_COMMAND_CLASS	commandClass,
		H_COMMAND_OPCODE	commandOpcode,
		int32_t	value
	)

inline

Send a command to the reader and writer chain of this processor

Parameters

commandClass	Class of command
commandOpcode	Opcode of command
value	integer value to send as the data

Returns: True if the command was executed, false otherwise

◆ GetMetrics()

template<class T >

HMetrics* HProcessor< T >::GetMetrics ( )

inline

Get the metrics object

◆ GetReader()

template<class T >

HReader< T > * HProcessor< T >::GetReader

Get the associated reader

Returns: A HReader*

◆ GetWriter()

template<class T >

HWriter< T > * HProcessor< T >::GetWriter

Get the associated writer

Returns: A HWriter*

◆ Halt()

template<class T >

void HProcessor< T >::Halt

virtual

Stop processing.

If the reader and writer is not destroyed, processing can be resumed by calling Run() once agan after setting the terminationToken to false

Reimplemented in HNetworkProcessor< T >.

◆ Read()

template<class T >

int HProcessor< T >::Read	(	T *	dest,
		int	blocksize
	)

Read directly from the associated reader

Parameters

dest	Destination buffer
blocksize	Number of samples to read

Returns: Number of blocks read

◆ Run()

template<class T >

void HProcessor< T >::Run ( long unsigned int blocks = 0 )

virtual

Read from the reader and write to the writer.

Processing stops when a zero-length read is received, halt() is called or the associated terminationToken is set to true.

Parameters

blocks Number of blocks to read or zero to read untill stopped (or null-read)

Reimplemented in HNetworkProcessor< T >, and HStreamProcessor< T >.

◆ SetWriter()

template<class T >

void HProcessor< T >::SetWriter ( HWriter< T > * writer )

inlineprotectedvirtual

Set the writer

Parameters

writer The writer to use

Implements HWriterConsumer< T >.

◆ Write()

template<class T >

int HProcessor< T >::Write	(	T *	src,
		int	blocksize
	)

Write directly to the associated writer

Parameters

src	Source buffer
blocksize	Number of samples to write

Returns: Number of blocks written

Member Data Documentation

◆ _reader

template<class T >

HReader<T>* HProcessor< T >::_reader

protected

The reader used by this processor

◆ _writer

template<class T >

HWriter<T>* HProcessor< T >::_writer

protected

The writer used by this processor

The documentation for this class was generated from the following files:

/home/henrik/Git/Hardt/hardt/libhardt/include/hprocessor.h
/home/henrik/Git/Hardt/hardt/libhardt/hprocessor.cpp
